- Continuous strip or sheet width measurement
- Real-time display of width, width deviation and centerline
- No need to reposition sensors for different widths as jobs change
- Continuous tracking and recording of width & centerline
- Alerts if width goes out of spec when limits are set
- Unaffected by ambient light
- Provides more consistent and accurate width measurement than by hand.
- No backlighting is needed.
- Highly resistant to contamination, dust particles, oil, vapors & water.
- Great replacement for Harris Instruments Scan-A-Line width systems.
Contact us today to get AGT Width in your plant
Features
Reliability
The AGT Width system configuration provides a very reliable platform for strip width & centerline measurement and S.P.C. reporting.
The AGT Width system configuration provides a very reliable platform for strip width & centerline measurement and S.P.C. reporting.
Data Storage and Analysis
All width and strip centerline data is automatically stored on the system and/or on a networked drive. The data is available for analysis with our optional Offline Data Analysis Software, a spreadsheet or any S.P.C. package.
All width and strip centerline data is automatically stored on the system and/or on a networked drive. The data is available for analysis with our optional Offline Data Analysis Software, a spreadsheet or any S.P.C. package.
Ease of Installation
The AGT Width Measurement System can be mounted freestanding on the floor or on existing building support structures.
The AGT Width Measurement System can be mounted freestanding on the floor or on existing building support structures.
Controls Integration
For steering control interface our system provides a +/- 0 to 10 VDC analog output.
For steering control interface our system provides a +/- 0 to 10 VDC analog output.
Real-time Display

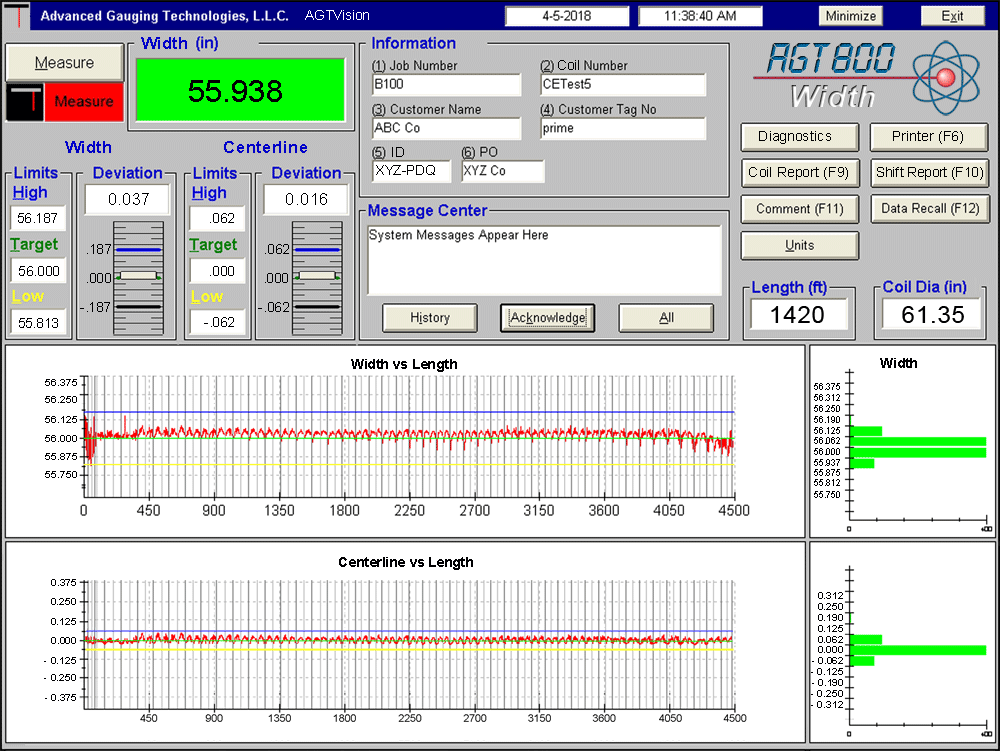

The interactive display shows real-time graphical representations of measured width, width deviation, width histogram, centerline measurement and centerline deviation.
The interactive display shows real-time graphical representations of measured width, width deviation, width histogram, centerline measurement and centerline deviation.
Options
- Vertical mounting supports
Specifications
- Narrowest to widest width range of 40″ without adjustment.
- Passline deviation +/- 2″
- Wander +/- 2″
- Strip width up to 96”
- +/- .031″ accuracy (optional +/- .005″ accuracy)
- Digital output for out of tolerance alarm
- No limit to line speed or thickness
- No backlight required.
